How to root Samsung Galaxy S5 SM G900M

This is step by step tutorial to root Samsung Galaxy S5 SM G900M with image guide. After root you can install custom Rom, App and Setting.

This is a tutorial of root Samsung Galaxy S5 SM G900M. In this guide you will find all steps with image, therefore it is safe and easy method of rooting your Galaxy S5 SM G900M and this guide is working on Android 4.4.2 KitKat, Android 5.0.2 Lollipop and Android 6.0.1 Marshmallow.

Samsung Galaxy S5 SM G900M is powered by Quad-core 2.5 GHz Krait 400 processor With andreno 330 GPU and Super AMOLED capacitive 5.1 inch touchscreen with resolution 1080 x 1920 pixels. Galaxy S5 SM G900M runs on 4.4 Android KitKat and it has 2GB RAM and 16GB internal storage.

Samsung Galaxy S5 SM G900M has superb performance. So root Galaxy S5 SM G900M phone, because root gives us a power to use maximum of your phone without any restrictions. After root you can install custom Rom, custom setting and apps in your phone. Read Root Advantage and Disadvantage by this post then follow these steps and root your phone.

Must read: Assign/Remove a special ringtone on particular contact in Android

Preparations of Root:

1. Take a backup of your phone.
2. Your phone battery should charge 80% minimum.

Download tools for root Samsung Galaxy S4:

File Name Download link
Samsung Galaxy S4 GT I9515L Odin Tool Download
Samsung Galaxy S4 GT I9515L USB Driver Download
Samsung Galaxy S4 GT I9515L CF-Auto-Root Download

Follow these steps to root Galaxy S5 SM G900M :

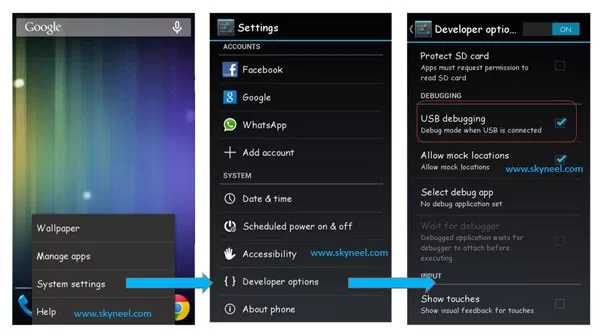

Step 1: Download and install your Phone USB driver on your PC. Step 2: Download Odin tool and CF-Auto-Root file and extract Odin tool & CF-Auto-Root file in the same folder. Download-Odin Step 3: Then after enable USB Debugging on your Phone. Go to Settings >>> Developer options >>> USB debugging check it ( If your phone have Android 4.2 or upper version then see how to enable Developer options here is guide of this Click here)

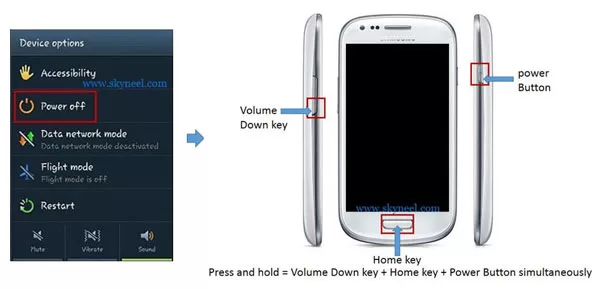

Enable-USB-Debugging Step 4: Now we will go to Downloading Mode, So Switch off your phone After then Press and hold volume down key with power button at the same time for 10 second maximum, see in this image.

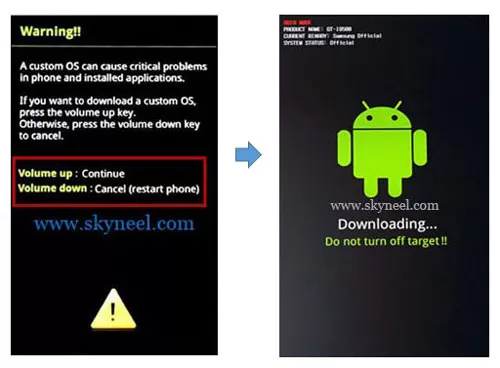

Switch-off Step 5: You will see a warning massage on your phone screen see in first image after then press Volume up key to continue or entering Download Mode. Now your phone entered in the Downloading Mode. You will see second image on your Device.

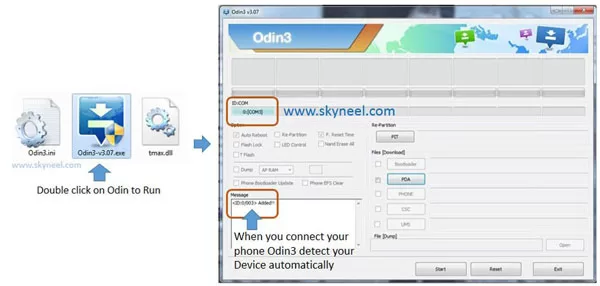

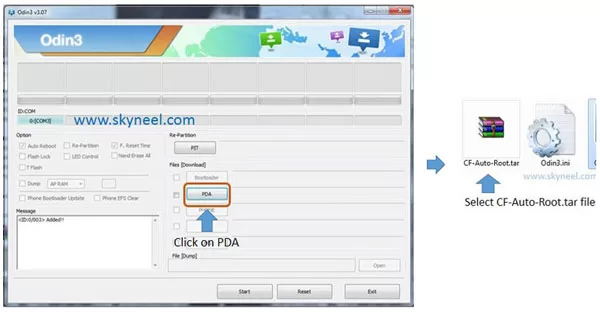

Download-Mode Step 6: Now double click on Odin.exe file for run Odin tool. You will see in the first image. After then Connect your phone to PC via USB cable In Downloading Mode. When you Connect your phone to PC then Odin detect your phone automatically and show com port and give massage in massage box. See in the second image. run-Odin-tool Step 7: Now click on AP or PDA button in the Odin tool window, when you click on the PDA button Odin will ask you file location then select your CF-Auto-Root file from odin folder or where you save this file.

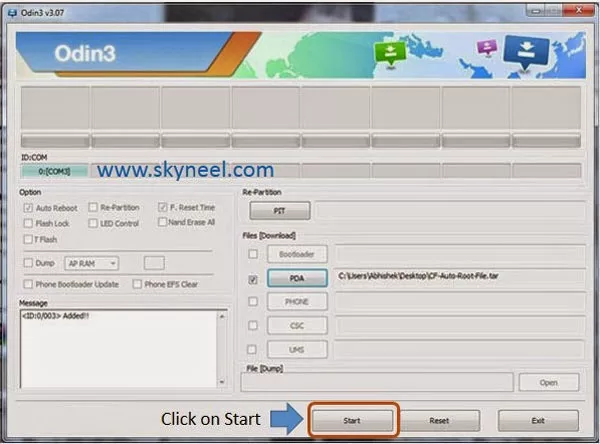

CF-Auto-Root Step 8: After select CF-Auto-Root file then Click on Start button in the Odin tool.

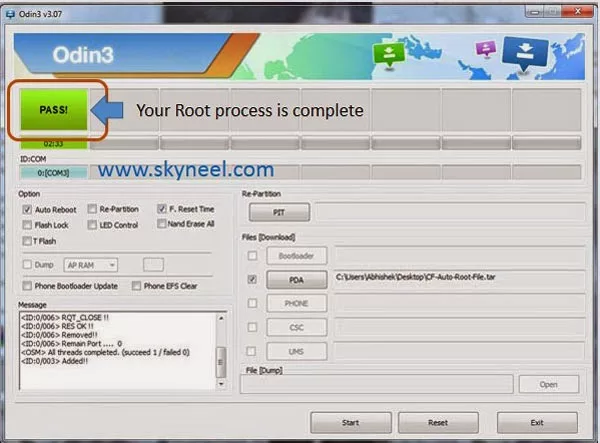

Start Step 9: Now Root process start and it take few second to root your phone. When root Galaxy S5 SM G900M process will complete then you will see green box in the Odin. see in the image.

root-your-phone Step 10: In this process your phone automatically reboot and you will get a massage pass in the Odin. Now disconnect your phone and start your phone then go to Application Menu where you will see SuperSU app. If you want check your phone is rooted or not then use this app click here

Must read: How to increase Internet speed upto 20% without Software

How to Unroot Samsung Galaxy S5 SM G900M:

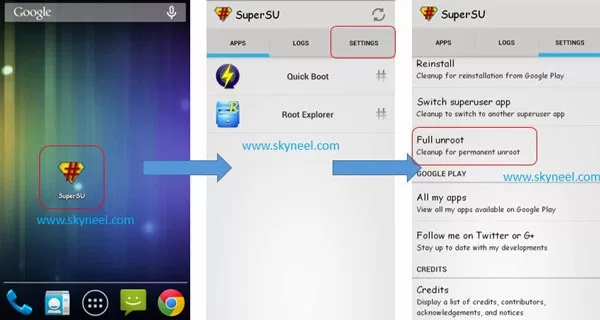

It is must for you to know how to unroot your phone. When you feel that you don’t want rooted phone then you can easily un-install root app and unroot your phone. Here is simple steps to unroot your device. You can also see unroot process in this image. Open Su App >>> Setting >>> Full Unroot that’s all


This is simple and easy root Samsung Galaxy S5 SM G900M process for your device. I can try to make it easy and make all steps clear to understand and try to make image all step for you. If your feel any problem then please comment us. I try to best resolve your problem. Thanks and Credits : Chainfire
