How to unbrick hard bricked Yu Yureka

This is a simple, safe and easy tutorial to unbrick hard bricked Yu Yureka with images guide and use alive Yu Yureka.

Hi, This is an fully worked and Approved unbrick hard bricked Yu Yureka guide. I have personally unbrick Yu Yureka using this guide. when I bricked my Yu Yureka, then I try so many methods and read lot of guides but I found many mistake them, so I try to make a prefect guide for it and try to provide all required tools and drivers in this guide for unbrick hard bricked Yu Yureka.

If your phone in under warranty then you should call customer care and replace or repair your phone.  Here we have Two Methods to unbrick Yu Yureka. Method 1: By QDLoader 9008 mode (if your device show in QDLoader 9008 mode) and Method 2: By short main board (if your device don’t show in QDLoader 9008 mode).

Preparation of flash or update:

1. Your phone battery should charge 80% minimum.
2. Read all steps then do it careful.
3. Make sure proper power backup of your PC.
4. You need a memory card(16 or 32GB) with card reader

Must Read: Yureka or Yureka Plus manually update COS 12.1 Lollipop Official

Download ROM and Tools of Yu Yureka :

FILE NAME DOWNLOAD LINK
Yu Yureka Stock Rom Fastboot image Download
Yu Yureka fastboot flashing package Download
Yu Yureka eMMC Image Download
Yu Yureka eMMC Image writer tool Download
Yu Yureka USB Driver Download

Yureka Stock Rom Fastboot image Password: skyneel.com

Method 1: Follow steps to unbrick Yu Yureka:

Step 1: Download and Extract Stock ROM and fast-boot flashing package of Yu Yureka in a folder, where you want. And Download and Extract Yu Yureka eMMC Image and eMMC Image writer tool.

Step 2: Now insert your memory card in card reader and Quick format with Fat32. Then remove your card and wait at least 1 minute. And insert your formatted memory card in card reader, then insert card reader in your PC USB port.

Step 3: Now install eMMC Image writer tool on your PC and write Yu Yureka eMMC Image to your memory card. After successful write Yu Yureka eMMC Image to your memory card, then remove your Memory card from card reader and wait 2 minutes. Now remove your All sim cards, then insert your Memory Card (eMMC Image) in your Yu Yureka.

Step 4: Now open Stock ROM and fast-boot flashing package folder of Yu Yureka and click on “flash-all.bat” to run it. Now you can see command window, in this command window you will see a message “< waiting for device >”.

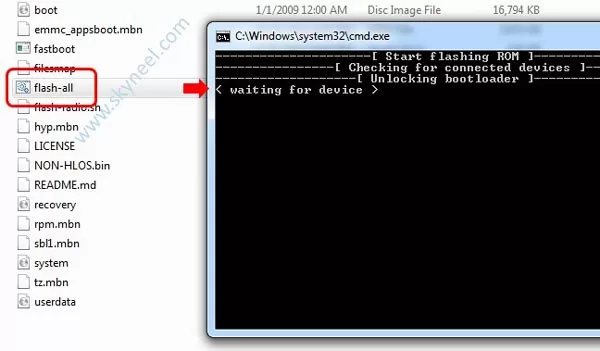

Command windows for fast boot

Step 5: Now connect your Yu Yureka in fast-boot mode (Press and hold Volume Up key) with USB cable to your PC or Laptop. The Flashing procedure will start and Don’t disconnect the Yu Yureka during flashing procedure. After finished this process, The command windows is automatically closed.

Step 6: Disconnect your device and remove memory card. Now boot your device by long pressing (approximately 3-5 minutes) the power button.

If this method is doesn’t work on your Yu Yureka then you can use method 2.

Method 2: Follow steps to unbrick Yu Yureka by shorting:

Step 1: Following steps 1 to 4 of method 1.

step 2: Now open you device back cover and remove back panel screw one by one, then you will see main board like this. (see in this image)

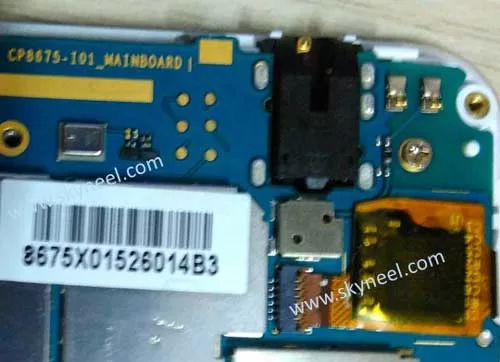

Main board Yu Yureka

step 3: Now tap the point no. 2 and 6 by a wire. (for tap using a wire to short main board points, see in this image) Now Press and hold Volume Up key with tapping both points together, then connect your phone to PC via your USB cable.

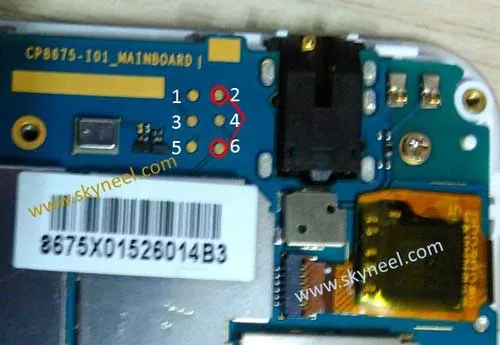

Main board Yu Yureka 2

step 4: Now flashing procedure will start and Don’t disconnect the Yu Yureka during flashing procedure. The command windows is automatically closed.

Step 5: Disconnect your device and remove memory card.Now boot your device by long pressing(approximately 3-5 minutes) the power button.

Must Read: How to fix or solve Micromax Yureka Proximity Sensor Problem

I hope you like this unbrick Yu Yureka guide from which you will be able to easily unbrick hard bricked Yu Yureka without any extra efforts. If feel any problem in this guide then please use comment box. Thanks to all.
