How to root Micromax A300 Canvas Gold and install CWM recovery

An easy step by step tutorial to root Micromax A300 Canvas Gold and install CWM recovery. After root you can install custom Rom, App and Setting.

This is installation guide for root Micromax A300 Canvas Gold and install CWM recovery. This method is easy and safe for your mobile. So root your phone and enjoy your phone without any restriction.

Micromax Canvas Gold comes with a 16 megapixel camera, 5 megapixel secondary cameras and runs an Octa-core chipset clocked at 2GHz. This is MediaTek MT6592T processor chipset. Canvas Gold A300 comes with 2 GB RAM, 32 GB phone internal memory and full HD 5-inch and 2350 mAh Battery.

Micromax A300 is great phone and must be root Micromax Canvas Gold because root allows for you to use a maximum of your phone without any restrictions. After root you will install custom apps, custom Rom and custom setting in your phone. But before root you must read Root Advantage and Disadvantage by this post. Then after follow these steps to root your phone.

Preparation of root Micromax Canvas Gold:

1. Take a backup of your phone Click here.
2. Your phone battery should charge 80% minimum.
3. Read all steps then do it careful.
4. Make sure proper power backup of your PC.

Must Read: Android Smartphone Free Top-Five Video Calling Apps


1. MT6592 Scatter file and TWRP Recovery Download
2. USB  Driver Download
3. SP Tool V5.1352 for Canvas Gold Download
4. file Download

Easy step to root Micromax A300 Canvas Gold and install CWM recovery

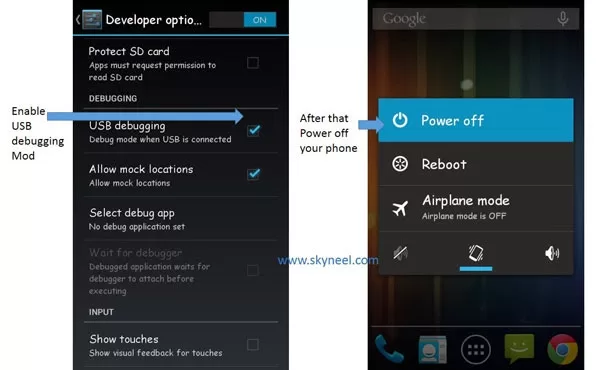

Step 1: Install drivers in your PC and Enable USB Debugging on your Phone. Go to Settings >>> Developer options >>> USB debugging check it ( If your phone have Android 4.2 or upper version then see how to enable Developer options here is guide of this Click here). After then switch off your phone.

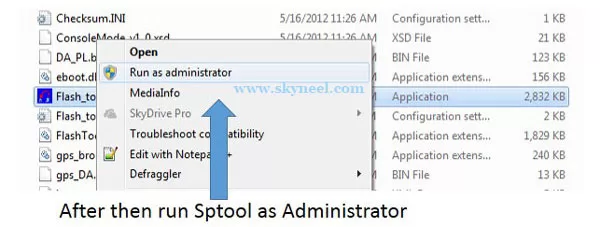

Step 2: Download SuperSU file and copy in your phone memory card. Now Download CWM recovery and scatter file of your phone and extract these file in a folder where you want. Extract and open the SP Tool. Sptool.exe Run as Administrator.

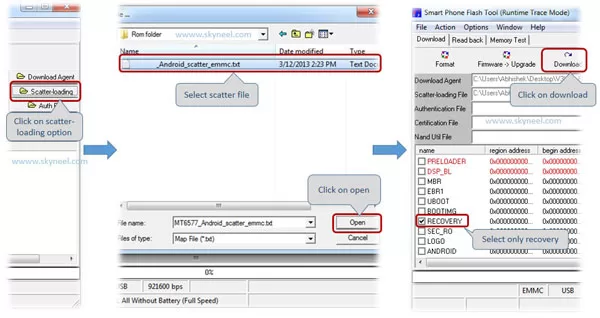

Step 3: You will see an SP tool window, now click on the scatter-Loading option in the SP tool. Then you will get the new tab of SP Tool which you ask the location of the scatter file on your PC. Now select the “Android_scatter_emmc.txt” file. See in this image.

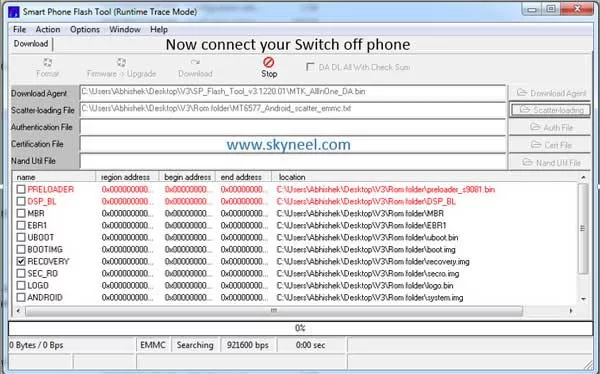

Step 4: Now connect your switch off phone with PC via USB cable (Make sure your phone is switched off).


Step 5: SP Tool detect your phone and process will start. If Sptool is not recognize/detect your phone then install vcom driver read this post it will help you click here (Driver already in phone flash drive if you don’t have these drivers then install it)

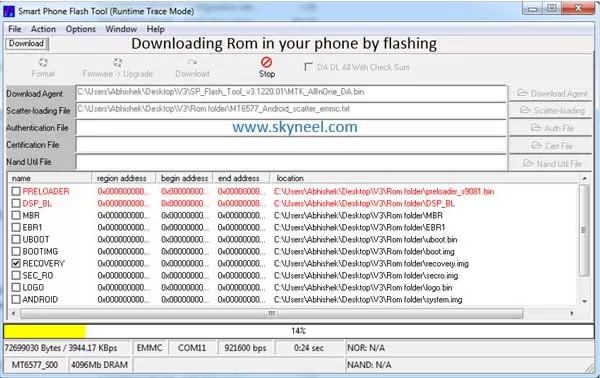

Step 6: Now start installing recovery in your phone by flashing.


Note: Don’t interrupt this process as it can potentially brick your device. Make sure no power interruption takes place.

Step 7: After the process complete, a green ring will appear.

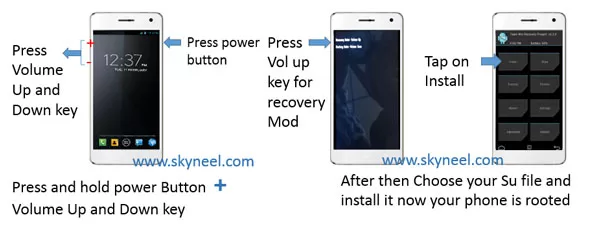

Step 9: Do not start your phone. Press and hold vol. up & down + power button then select “recovery mode” (If your touch not work then use volume up and down key for menu up and down and Power button as a enter button)


Step 10. Click on install button/ choose install and select file from your save location on your SD card and install this file. Now reboot your phone.


Must Read: What to do ifyour phone got wet or fell into the water

Note: I am not responsible if you make Mistakes and Bricked Devices.


  1. after flashing
    my phone is not starting at all…only screen light glows nd get off again…..
    help me wht should i do………..

  2. Updated firmware of micromax a300 , now free internal memory 26 gb,
    Sir , now i want to root my phone MICROMAX A300 . Please help

  3. Hi Abhishek,
    Really need help, i gifted my gf canvas gold A300.As soon as the warranty got over , she wanted me to root it n upgrade to lollipop.
    i went thru the above tutorial and some other in and tried , but in between it showed “All files in Rom folder doesnt exist” and thn my mobile doesnt switch on.
    Help me plzzz.
    if possible will call u n ask the soluton , but need help genuinely.

  4. Sir sp tool doesn't detect the phone. Tried every way of installing driver but nothing works. Using win 8.1. The yellow mark still comes. When I press dwnld it's not search my pH.

  5. My phone won't turn on. Just black screen. After trying to flash above recovery.
    I got message Downloading recovery failed, and some log file came.
    When I connect phone to pc, it connects but SP tool won't seeing it now. I think because phone is still in on state. Is there any way I can turn this phone off? by pressing two keys simultaneously or something?

  6. i successfully installed CWM recovery but it cant navigate zip file when i m choose "choose zip from sd card", what happened ?, please help me

    1. thanks for ur response, but installing SU that way throws an error, "no SU binary installed, and SU cant install it." Also root checker app says that the phone is not rooted.

  7. At the 10th step my phone says "Error mounting SD card". What should i do know?
    Reply ASAP please

  8. Lastlysir can yiu suggest some must have root apps for this phone . It contains a lot of bloatware which runs in background always . Although phone has 2 gbof ram out which only 1 gb free even after reset

    1. hi

      I don't suggest you any custom Rom because custom Rom means, Beginning of troubles in your phone.

  9. will it be 100% successfull because i tried kingoroot framaroot and towel root all failed..i have kitkat 4.4.2 installed

  10. The scatter file you used was mt6592 but gold has mt6692t chipset. Also have you really tested it?? On what android version?

    1. Never mind, I knew the problem was with the scatter file. I made a new scatter file from MTK tools and using that, flashed the recovery. Thanks for the recovery.img

    2. Hi @Dhaval i also got the same error plz help me how to fix this or can u plz share ur scatter file with me thnx in advance :)

    3. Hi All,

      I am novice and wanted to let you know that I have rooted the phone using KingRoot which I felt was easy to use. My Friend Akash Bajaj suggested it.

      Now trying to create partition preferably (SWAP partition) as you know A300 comes with 32GB RAM and it shows (total) Phone Internal storage of 1.48GB (I have 286MB available) and Phone storage (built in Memory) of 25.39GB (I have 23.84GB available) but I keep facing the error of low memory.

      I need help in creating the SWAP partition. I tried using the free version of RAMEXPANDER and ROM Toolkit Pro. I also tried MemoryInfo-Swap but now of them work.

      Can someone guide me please, without the memory issue fix this phone is junk but I am sure if one has expanded the memory it will be one of the best phone in market.
