New update of Micromax A117 4.2 Jelly Bean Stock Rom V2

New update of Micromax A117 Stock Rom V2. This is safe and easy tutorial with image to update your Canvas Magnus.

Micromax release New update of Stock Rom V2. Micromax integrated ‘foneclay’ in this Version. Micromax will release kitkat update for Canvas Magnus. Micromax A117 Canvas Magnus has Quad core 1.5 GHz  with 5’’ inch display with 1GB Ram. Micromax A117 nice phone and it will get 4.4 Android Kit-Kat update soon.

Never miss new updates on Telegram 📲

Preparation of flash or update:

1.  Take a backup of your phone Click here.
2. Take a backup of your IMEI no. by mobile uncle tool Click here.
3. Your phone battery should charge 80% minimum.
4. Make sure proper power backup of your PC.
5. Read all steps then do it careful.

Must Read: How to install custom fonts in Android phones

Download ROM and Tools of Micromax A117 Canvas Magnus:

File Name Download link
Micromax A117 Canvas Magnus Stock Rom V2 Download
Micromax A117 Canvas Magnus SP Tool V3.1304 Download
Micromax A117 Canvas Magnus USB Driver Download

How to install new update of Micromax A117 Canvas Magnus Stock Rom V2:

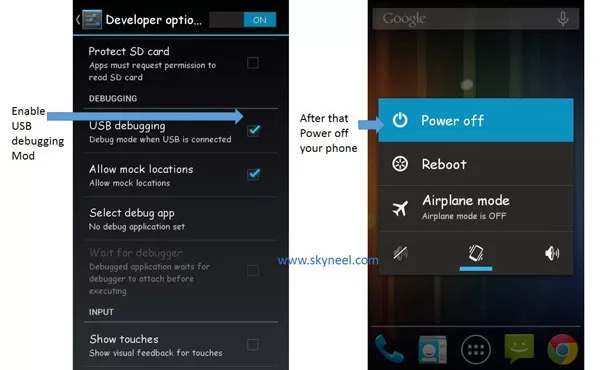

Step 1: Install drivers in your PC  and Enable USB Debugging on your Phone. Go to Settings >>> Developer options >>> USB debugging check it ( If your phone have Android 4.2 or upper version then see how to enable Developer options here is guide of this Click here). After then switch off your phone.

Enable-debugging

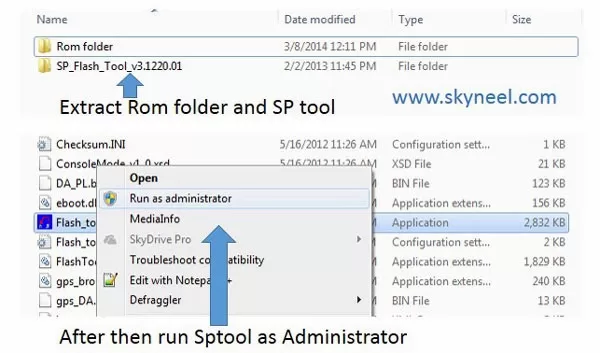

step 2:  Extract the Stock ROM folder where you want

Extract-Stock-ROM

Step 3: Extract and open the SP Tool. Sptool.exe Run as Administrator

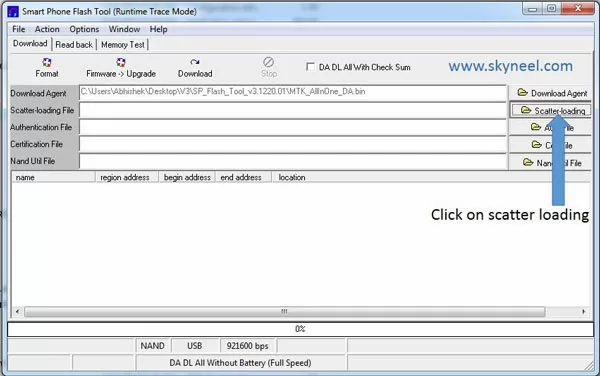

Step 4: Click on Scatter-Loading option.

Scatter-Loading

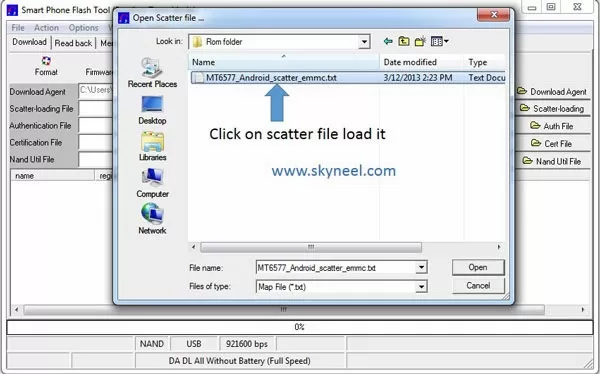

Step 5: SpTool ask you the location of the scatter file in your PC. You will find it in the extracted Stock ROM folder. Now go to the Rom folder and select the file “Android_scatter_emmc.txt” which is our scatter file.

scatter-file

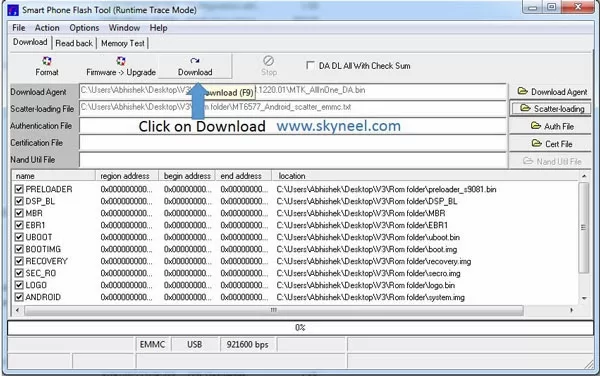

Step 6: Now click on Download.

Flashing

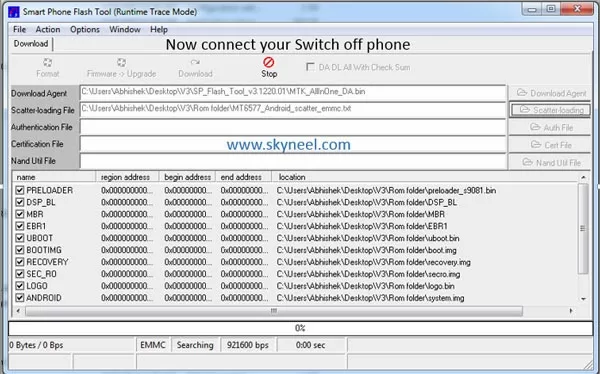

Step 7: Connect your switch off phone with PC via USB cable  (Make sure your phone is switched off).

Flashing

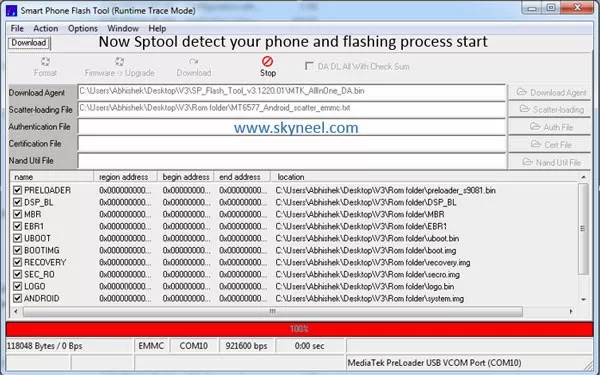

Step 8: SP Tool detect your phone and process will start. If Sptool is not recognize/detect your phone then install vcom driver read this post it will help you click here (Driver already in phone flash drive if you don’t have these drivers then install it)

Flashing

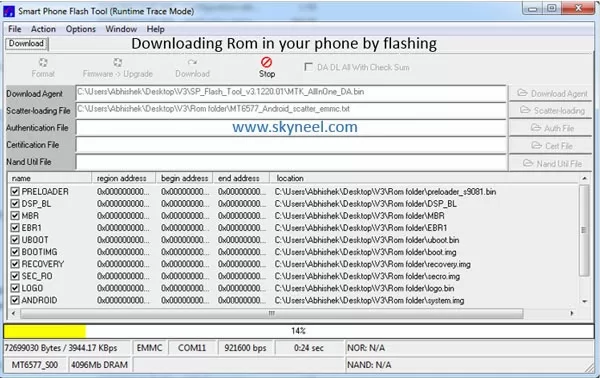

Step 9: Now start downloading Stock Rom in your phone by flashing

Flashing

Note: Don’t interrupt this process as it can potentially brick your device. Make sure no power interruption takes place.

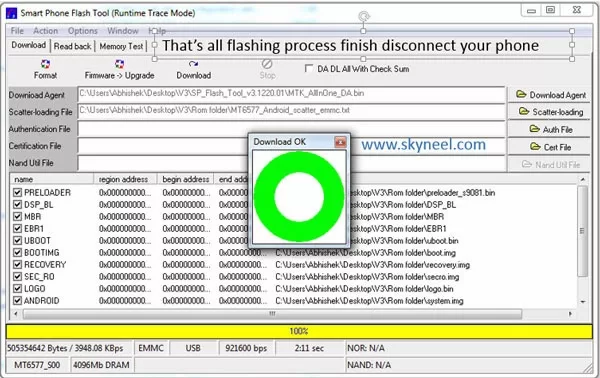

Step 10:  After the process complete, a green ring will appear. Flashing

Step 11: Disconnect your phone. Now your phone is updated.

Must Read: New update of Micromax Canvas Magnus A117 Stock Rom V3

After update you can root your Canvas Magnus because root allows for you to use a maximum of your phone without any restrictions.After root you will install custom apps, custom Rom and custom setting in your phone.But before root your phone, you must read Root Advantage and Disadvantage by this post. If you want to root then read these root guide “How to Root Micromax A117” and How to install CWM recovery in Micromax A117 Canvas Magnus.

Note: I am not responsible if you make Mistakes and Bricked Devices.

24 Comments

  1. Hi,
    Sometimes after restarting my magnus, battery level drops significantly. I have not rooted my phone. What can be the problem.?
    thanks in advance. :)

  2. How to convert from carliv touch recovery to philz touch … And also I download philz touch 5 file but mobileuncle c'nt convert …
    Now running iz kitkat 4.4.3 in my drive .. Otherwise I want to get back for stock ROM … Plz help

  3. I have 4.2.1 jelly bean in my handset if i update my phone through your update then my handset which jelly bean ?

  4. hi abhishek i recently went to mmx customer care with my canvas magnus. they reinstalled the OS after which i got foneclay in my phone. but i don't know whether it is version 2 or version 3. how to check that.

  5. Hi,
    I have Canvus magnus a117 purchased in Dec 2013, its speaker volume is fluctating. Ringer relaced once and now service center engineer told that wait till new update of android 4.2.4.
    Can you tell me after updating version this problem will get resolve… or tell me what i have to do ???

  6. the display of my new micromax canvas magnus A117 is broken, how do i take the backup from my phone as the touch is not at all working.

    1. Hi Leny

      Go to service center, change your touch screen and told them don't delete any thing.

  7. Hii…sir
    I am using micromax a117 and i have rooted..after flashimg a s4 rom I have lost my imei no..and i have done everything what i can do..but not working…..plz help

  8. i rooted my micromax canvas magnus a117 and deleted free trial games and added some fonts.
    for few hours it worked great.after i rebooted my phone it didnt start. only canvas magnus logo appears.
    i did hard reset but that didnt worked. then i tried installing stock rom but the installation isnt complete.
    it says"Installation Aborted"
    please help me through this.
    thanks

  9. thanks…. abhishek jeeeeee
    mai to dar gaya tha ki mera a117 micromax dead ho gaya hai… thanks for this ……………web site u r great……

    1. Welcome Ashutosh

      Join us on Facebook and Google plus for our new update and post

  10. what are the differences between this update and default magnus os
    also can the v4 of canvas hd be installed on magnus?

    1. Hi sadastw

      default magnus Rom is release with Canvas Magnus lunching time , and after few day or month Micromax release bug fix OS if they found any bug or error, it is called update of Rom. Canvas HD Rom can not install Canvas Magnus.
